Body type ： casting ball Valve
DN ：DN40, 50, 65, 80, 100, 150, 200, 250, 300, 350, 400
Nominal pressure：ANSI 150, 300, 600
　　　　　 PN16, 25, 40, 64
Connection Type：Flange type ：ANSI B16.5 RF, RTJ
　　　　　 JB/T79.1，DIN 2533/2534/2543/2545 RF
　　　　　 JB/T79.2 FM
　　　　　 welding type：ANSI B16.5 weld SW(DN≤50);
　　　　　 weld BW(DN≥65)
Flange distance ：ANSIIEC 53441976 PNDIN3202F1
Body Materials ：as GHL type .

Technical parameters：

valve seat type		Metal valve seat							Soft valve seat
Flow characteristics		Linear			Equal percentage			Quick open	Linear			Equal percentage			Quick open
DN	stroke	Cv1	Cv2	Cv3	Cv1	Cv2	Cv3	Cv1	Cv1	Cv2	Cv3	Cv1	Cv2	Cv3	Cv1
40	/	29	19	11.5	29	19	11.5	29	29	19	11.5	29	19	11.5	29
50		46	29	19	46	29	19	46	46	29	19	46	29	19	46
65		73	46	29	73	46	29	73	73	46	29	73	46	29	73
80	30	116	73	46	116	73	46	116	116	73	46	116	73	46	116
100	30	186	116	73	186	116	73	186	186	116	73	186	116	73	186
150	60	445	304	176	445	304	176	445	445	304	-	445	304	-	445
200	60	761	445	304	761	445	304	761	761	-	-	761	-	-	761
250	100	1053	761	445	1053	761	445	1053	-	-	-	-	-	-	-
300		1521	1053	761	1521	1053	761	1521	-	-	-	-	-	-	-
350		2106	1521	1053	2106	1521	1053	2106	-	-	-	-	-	-	-
400	120	2925	2106	1521	2925	2106	1521	2925	-	-	-	-	-	-	-

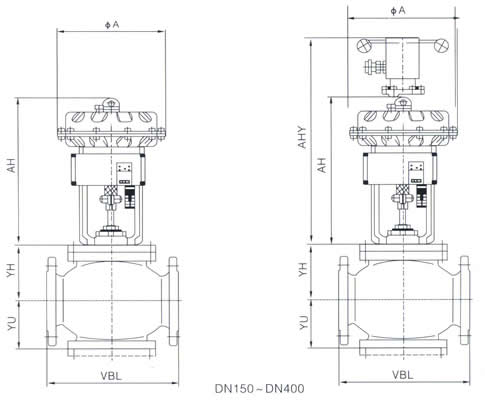

Size & Weight (DN150-DN400，PN16/25/40)

Body Size (mm) Body Flange sizeDIN2533/2534/2543/2545 Flange distance DIN3202-F1
Valve	DN		150	200	250	300	350	400
	VBL		480	600	730	850	980	1100
	VH	＜300℃	260	292	357	394	462	518
	VH	≥300℃	355	407	506	543	611	667
	VU	3Flange	189	239	305	335	395	443
actuator	φA	MF3	400		/
	φA	MF5	596
	AH	MF3	625		/
	AH	MF5	840		1010			1080
	AHV	MF3	888		/
	B		200		340
	Weight(kg)	MF3	190	250	/
	Weight(kg)	MF5	330	390	450	750	840	1490
