1.6MPa	DN	L	D	D1	b	N-φd	Model	L1	H	D0
J941H J941Y J941W J941F J941N 16C 16P 16R 161	50	230	160	125	16	4-φ18	DZW10	590	645	365
	65	290	180	145	18	4-φ18	DZW10	590	690	365
	80	310	195	160	20	8-φ18	DZW20	590	715	365
	100	350	215	180	20	8-φ18	DZW20	590	770	365
	125	400	245	210	22	8-φ18	DZW30	590	780	365
	150	480	280	240	24	8-φ23	DZW45	590	875	365
	200	600	335	295	26	12-φ23	DZW60	810	967	470
	250	650	405	355	30	12-φ25	DZW90	810	1153	470
	300	750	460	410	30	12-φ25	DZW120	830	1292	550
2.5MPa	50	230	160	125	20	4-φ18	DZW10	590	645	365
J941H J941Y J941W 25 25P 25R 251	65	290	180	145	22	8-φ18	DZW10	590	690	365
	80	310	195	160	22	8-φ18	DZW20	590	715	365
	100	350	230	190	24	8-φ23	DZW20	590	770	365
	125	400	270	220	28	8-φ25	DZW30	590	780	365
	150	480	300	250	30	8-φ25	DZW45	810	875	470
	200	600	360	310	34	12-φ25	DZW60	810	967	470
	250	650	425	370	36	12-φ30	DZW90	830	1153	550
	300	750	485	430	40	16-φ30	DZW120	830	1292	550

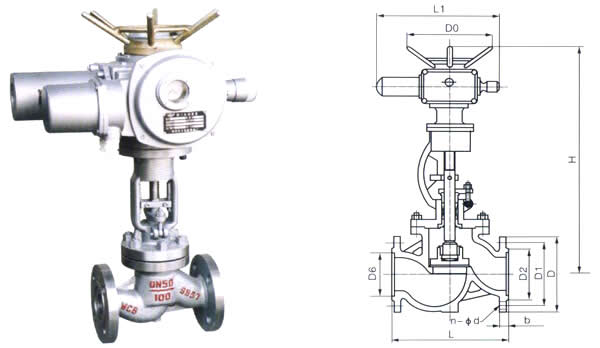

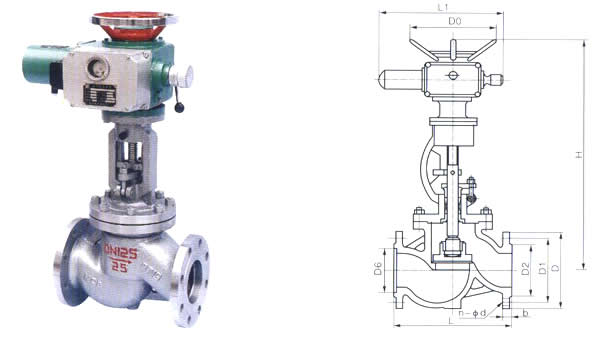

Steel flange stop valve

Size and connection size

4.0MPa	DN	L	D	D1	D2	D6	b	n-φd	Model	L1	H	D0
J941H J941Y J941W 40 40P 40R 401	50	230	160	125	100	88	20	4-φ18	DZW10	590	645	365
	65	290	180	145	120	110	22	8-φ18	DZW10	590	690	365
	80	310	195	160	135	121	22	8-φ18	DZW20	590	715	365
	100	350	230	190	160	150	24	8-φ23	DZW30	590	770	365
	125	400	270	220	188	176	28	8-φ25	DZW45	810	782	470
	150	480	300	250	218	204	30	8-φ25	DZW60	810	875	470
	200	600	375	320	282	260	38	12-φ30	DZW90	830	1160	550
6.4MPa	50	300	175	135	105	88	26	4-φ23	DZW10	590	710	365
J941H J941Y J941W 64 64P 64R 641	65	340	200	160	130	110	28	8-φ23	DZW20	590	750	365
	80	380	210	170	140	121	30	8-φ23	DZW30	590	785	365
	100	430	250	200	168	150	32	8-φ25	DZW45	810	837	470
	125	500	295	240	202	176	36	8-φ30	DZW60	810	1031	470
	150	550	340	280	240	204	38	8-φ34	DZW90	830	1066	550
	200	650	405	345	300	260	44	12-φ34	DZW120	830	1213	550
